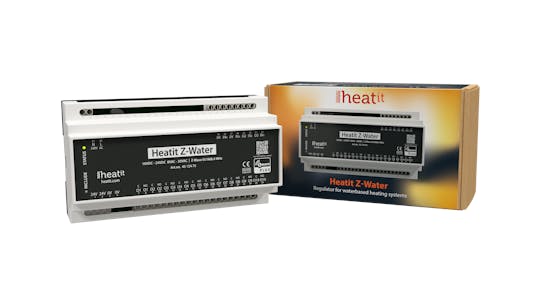

Heatit Z-Water

Name: Heatit Z-Water
Price: 270.00 EUR
Availability: InStock

Z-Wave Regulator 868,4 MHz

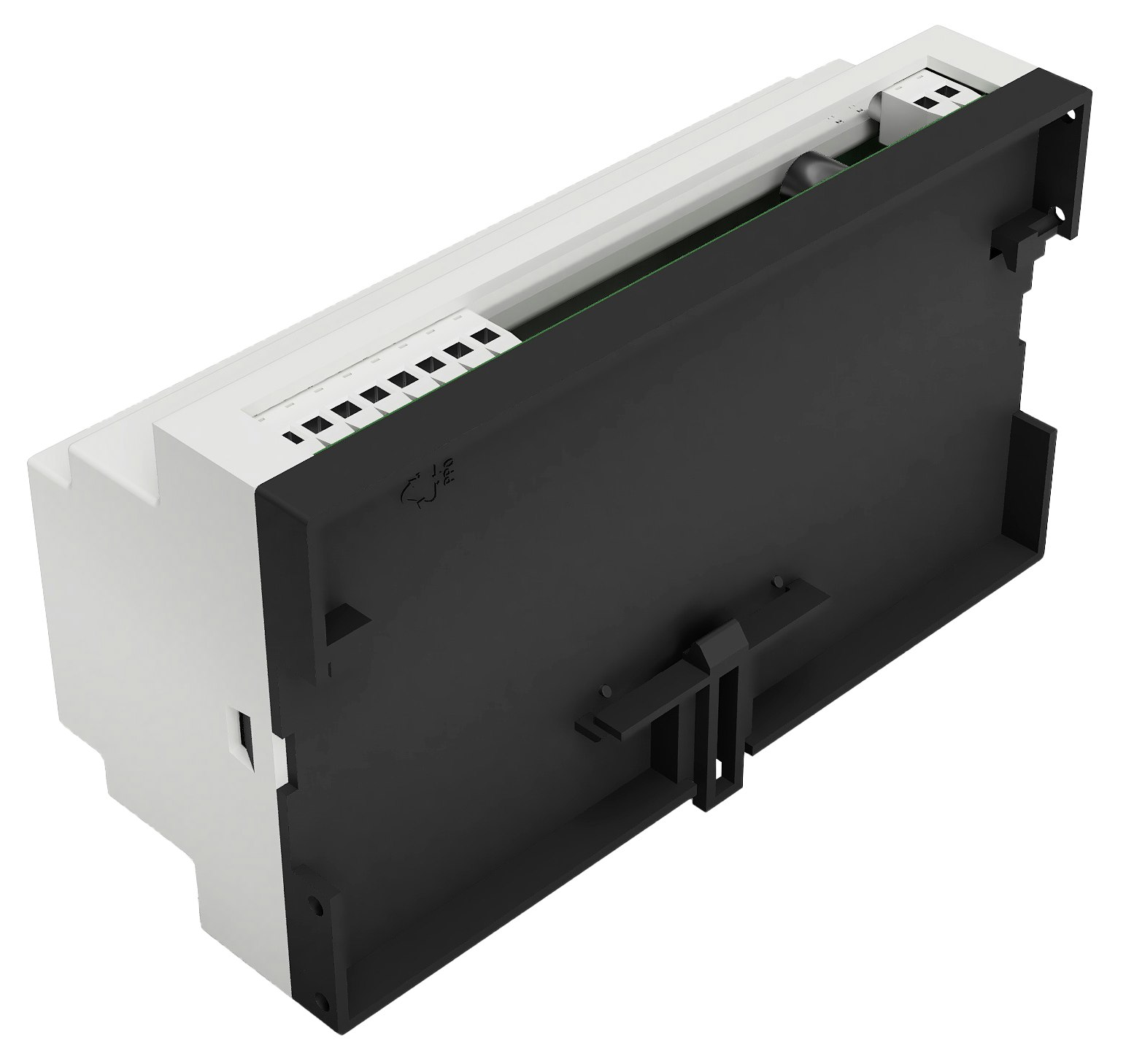

Heatit Z-Water is a DIN-rail regulator for controlling waterbased heating systems. The module clips right onto a DIN-rail to add a variety of functions to your wireless Z-Wave network. Heatit Z-Water is equipped with 10 relay outputs and it has 4 analog inputs.

The module is power supplied from a 230VAC mains connection and is able to deliver an output supply of 24VDC or 230VAC. Heatit Z-Water relay outputs may be freely controlled from the Z-Wave network, and may be used for several purposes, e.g. on/off control of lights, controlling valve actuators in an underfloor heating system, or controlling other home automation systems.

Should not be placed in steel cabinets as this will reduce the range.

This unit has been integrated for Samsung SmartThings by RBOY Apps

GTIN: 7071236014065

Art.no.: 4512475

Documents

Module Connections User manual (English) FW 2.1 Data sheet (English)Data sheet (English)Data sheet (Norwegian)

Features

Regulator for waterbased heating systems
Relay outputs can control actuators in a waterbased floor heating system
May be used to control both 24V actuators and 230VAC actuators
May be used with a Heatit Z-Temp2 or Heatit Z-TRM3 thermostat in each zone
DIN-rail mounting
Works as a Z-Wave repeater to improve the Z-Wave network range
Firmware update (OTA)
Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical data

IOT Protocol: Z-Wave - 868.4 MHz (EU)
Voltage: 240V
Max load (Watt - resistive load): 150
Max current (Ampere): 5
Own power usage (watt): 0.6
Max installation temperature (°C): 40
Min installation temperature (°C): 5
Min. working temperature (°C): 5
Protection grade (IP): IP21
Certifications: Z-Wave Plus
Total gross effect (W): 1500
Declarations: CE declaration
International standard: RoHS 2011/65/EU, EMC 2014/30/EU, EN 50491-3:2009, EN 60669-2: 2004, LVD 2014/35/EU, RoHS 2011/65/EU, CE
Signal range radio frequency (max no. meters): 40
Max connection dimension (mm²): 2,5mm²
Max ambient humidity (%RH): 90% RF
Max temperature without load (°C): 40
Max temperature with load (°C): 40
Assembly / mounting location: DIN Rail

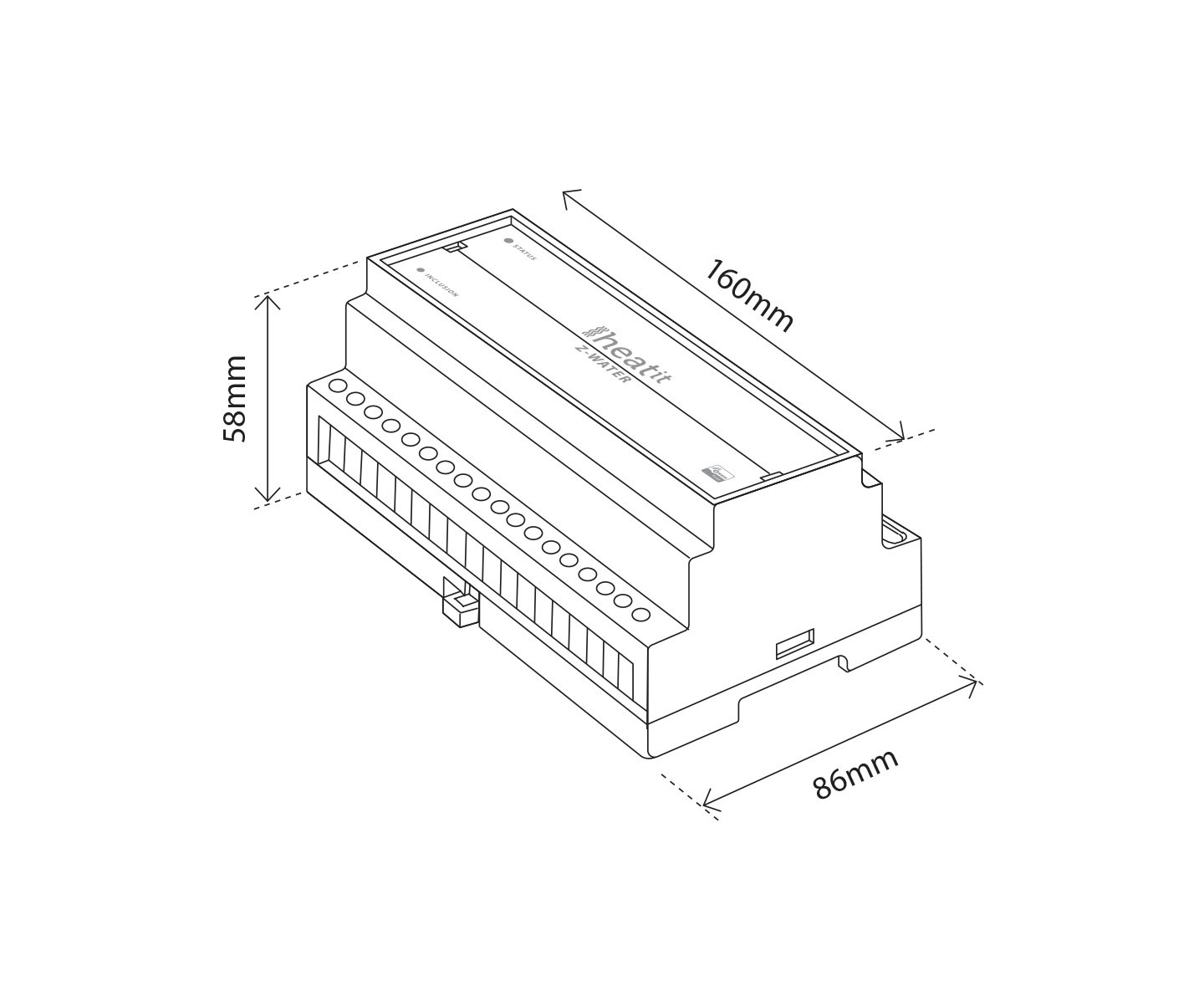

Product height (mm): 59
Product length (mm): 86
Product weight (gram): 330
Product width (mm): 156
IOT Chip type: Z-Wave 500 chip
Z-Wave encryption mode: S2 Unauthenticated Class, S2 Authenticated Class, S2 Unauthenticated Class, S0

+ Show more (18)

- Show less

Stock Info

In stock

The product is located in Sweden, and will be shipped from Sweden.

VAT applicable for personal use. See Pricing-section.
Shipping cost will apply.

Maintenance

The device is maintenance-free
