Smart ProductsControllersHeatit ZM Thermostat 16A

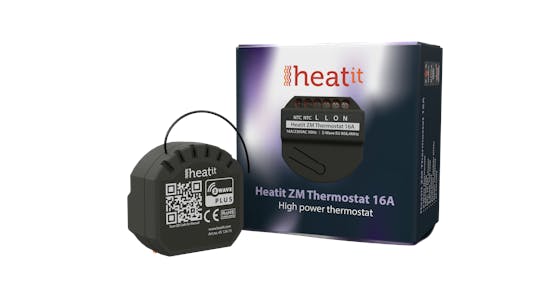

Heatit ZM Thermostat 16A

Z-Wave Thermostat 16A 868,4 MHz

€ 53.00 inc.vat

4 - Limited stock
Log in to get your personal prices. Register Login
Heatit ZM Thermostat is an electronic thermostat for electrical underfloor heating designed for inwall installations. The thermostat allows you to control your electrical heating through your Z-Wave network.

The module is equipped with a 16A relay. The thermostat requires you to connect an external wired sensor, which is included.

Heatit ZM Thermostat has active power metering and it gives you real time information about your power consumption.
GTIN: 7071236016441 4512673
  • Z-Wave
  • Thermostat for inwall installations
  • 16A/3600W resistive loads
  • NTC 10kΩ sensor (included)
  • Setpoint to be set in gateway
  • SmartStart
  • Firmware update (OTA)
  • Active power metering
  • Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class
Technical data
  • IOT Protocol: Z-Wave - 868.4 MHz (EU)
  • Voltage: 230V 50Hz
  • Max load (Watt - resistive load): 3600
  • Max current (Ampere): 16
  • Own power usage (watt): 1
  • Max installation temperature (°C): 40
  • Min installation temperature (°C): 5
  • Protection grade (IP): IP20
  • Certifications: Z-Wave Plus
  • Alternate IoT-communication procols: No alternative communication protocols
  • Ambient humidity (RH non-condensing %): 10-85
  • Ambient temperature range in storage (°C): -30-70
  • Total gross effect (W): 3600
  • Declarations: CE, CE declaration
  • International standard: EN 60669-2-1/A12:2010, RoHS 2002/95/EC, IEC 965-2-1, ETSI EN 301 489-3 V2.1.1(2017-03), ETSI EN 300 220-2 V3.1.1 (2017-02), EN 62479:2010, EN 60669-2-5:2016, EN 60669-2-1:2004 + A1:2009, EN 60669-2-1/A12:2010, WEE 2002/96/EC
  • Signal range radio frequency (max no. meters): 40
  • Max load (VA-inductive load): 16
  • Max connection dimension (mm²): 2,5mm²
  • Max regulating temperature (ºC): 40
  • Assembly / mounting location: European Junction Box
  • Product height (mm): 46
  • Product length (mm): 25
  • Product weight (gram): 41
  • Product width (mm): 45
  • IOT Chip type: Z-Wave 700 chip
  • Z-Wave encryption mode: S0, S2 Unauthenticated Class, S2 Authenticated Class, S0, AES-128 encryption
+ Show more (19)
- Show less
Stock Info
Limited stock
The product is located in Sweden, and will be shipped from Sweden.

VAT applicable for personal use. See Pricing-section.
Shipping cost will apply.
The device is maintenance-free. Indoor use only.
