Heatit ZM Single Relay 16A

Heatit ZM Single Relay 16A

€ 43.00 inc.vat

100+ In stock
Log in to get your personal prices. Register Login
Heatit ZM Single Relay is a high power relay for in-wall installations that fits in an European wall box. The relay allows you to control connected devices either through your Z-Wave network or via a wired switch. The module is equipped with a 16A relay and has a scene controller functionality.

The Heatit ZM Single Relay has power metering and it gives you the real time information about your power consumption.

The relay can withstand a load of max. 16A/3600W at 230VAC. We recommend a contactor for loads above 13A.
GTIN: 7071236015604
Art.no.: 4512671
Features
  • Z-Wave
  • High power relay for inwall installations
  • 16A/3600W resistive loads
  • SmartStart
  • Scene Controller
  • Firmware update (OTA)
  • Power Metering
  • Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class
Technical data
  • IOT Protocol: Z-Wave - 868.4 MHz (EU)
  • Voltage: 230V 50Hz
  • Max load (Watt - resistive load): 3600
  • Max current (Ampere): 16
  • Own power usage (watt): 1
  • Max installation temperature (°C): 40
  • Min installation temperature (°C): 5
  • Min. working temperature (°C): 5
  • Protection grade (IP): IP 20
  • Certifications: Z-Wave Plus v2
  • Ambient humidity (RH non-condensing %): 10-85
  • Ambient temperature range in storage (°C): -50
  • Range ambient temperature (°C): 5-40
  • Total gross effect (W): 3600
  • International standard: WEE 2002/96/EC, EN 60669-1:2018, EN 60669-2-5:2016, EN 60669-2-1:2004 + A1:2009, EN 62479:2010, ETSI EN 301 489-3 V2.1.1(2017-03), ETSI EN 300 220-2 V3.1.1 (2017-02), IEC 965-2-1, RoHS 2002/95/EG, WEE 2002/96/EC, EN 60669-1:2004/ A12:2010
  • Signal range radio frequency (max no. meters): 40
  • Max connection dimension (mm²): 2,5mm²
  • Max ambient humidity (%RH): 95% RF
  • Max temperature without load (°C): 40
  • Max temperature with load (°C): 40
  • Assembly / mounting location: Wall box ø≥60mm, depth ≥60mm
  • Product height (mm): 46
  • Product length (mm): 25
  • Product weight (gram): 42
  • Product width (mm): 45
  • IOT Chip type: Z-Wave 700 chip
  • Z-Wave encryption mode: S2 Unauthenticated Class, S2 Authenticated Class, S2 Unauthenticated Class, S0
+ Show more (20)
- Show less
Stock Info
In stock
The product is located in Sweden, and will be shipped from Sweden.

VAT applicable for personal use. See Pricing-section.
Shipping cost will apply.
Maintenance
The device is maintenance-free. Indoor use only.
Dealers / Where to buy
Based on your location Heatit Controls does not have a reseller or distributor in your country. You can take a look at our list of resellers and distributors on the Where to buy section or you can purchase directly from us in Sweden on this site.
Pricing
Base price without VAT: € 43.00
Base price subjective to 0% VAT: € 43.00

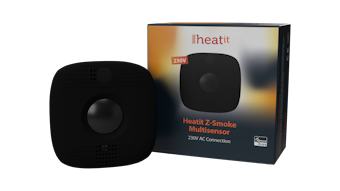

Heatit Z-Smoke Multisensor 230VAC White
