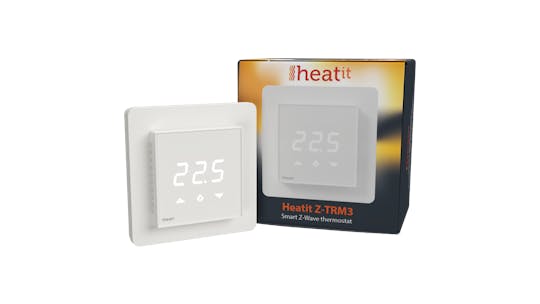

Heatit Z-TRM3 White

Z-Wave thermostat 3600W 16A 868,4 MHz

€ 115.00 inc.vat

Not in stock
Log in to get your personal prices. Register Login
Heatit Z-TRM3 is an electronic thermostat for electrical underfloor heating. The thermostat has a built-in Z-Wave chip that can be connected to control systems.
The thermostat fits in standard European wall box and can be used with most frames that are adapted to System 55. The thermostat has a builtin sensor and can be connected to two external sensors.

Heatit Z-TRM3 has power metering and it gives you the real time information about your power consumption.

The thermostat enables you to make associations with external relays and wall plugs.

Designed for electric heating.

The thermostat can withstand a load of max. 16A/3600W at 230VAC. We recommend a contactor for loads above 13A.
GTIN: 7071236015239 5430599
  • Z-Wave thermostat
  • Floor sensor
  • Internal room sensor
  • External room sensor (wired by cable)
  • Temperature limiter
  • SmartStart
  • Weekly schedule
  • Temperature read out in gateway
  • Firmware update (OTA)
  • Power metering
  • Relay status LED
  • Single pole switch
  • Lock mode/child lock
  • Temperature calibration
  • 5 associations
  • Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class
Technical data
  • IOT Protocol: Z-Wave - 868.4 MHz (EU)
  • Voltage: 230V 50Hz
  • Max load (Watt - resistive load): 3600
  • Max current (Ampere): 16
  • Own power usage (watt): 2
  • Max installation temperature (°C): 40
  • Min installation temperature (°C): 5
  • Min. working temperature (°C): 5
  • Temperature interval: 5°C - 40°C, External room sensor 5°C - 40°C
  • Hysteresis: 0,3°C to 3,0°C (default hysteresis 0,5°C)
  • Switch type: One-pole switch
  • Compatible NTC-sensors (k? @ 25°C): 47, 12, 15, 22, 33, 47, 10
  • Protection grade (IP): IP 21
  • Certifications: Z-Wave Plus
  • Range ambient temperature (°C): 5-40
  • Total gross effect (W): 3600
  • Declarations: CE
  • International standard: RoHS 2011/65/EU, EMC 2014/30/EU, EN 60730-1, EN 60730-2-9, LVD 2014/35/EU, RoHS 2011/65/EU, CE
  • Signal range radio frequency (max no. meters): 40
  • Max connection dimension (mm²): 2,5mm²
  • Max ambient humidity (%RH): 80% RF, 85% RF
  • Max regulating temperature (ºC): 40
  • Max temperature without load (°C): 40
  • Max temperature with load (°C): 35
  • Product height (mm): 52
  • Product length (mm): 87
  • Product weight (gram): 109
  • Product width (mm): 87
  • IOT Chip type: Z-Wave 500 chip
  • Z-Wave encryption mode: AES-128 kryptering, S2 Authenticated Class, S2 Unauthenticated Class, AES-128 encryption, S0
+ Show more (23)
- Show less
Stock Info
Not in stock
The product is located in Sweden, and will be shipped from Sweden.

VAT applicable for personal use. See Pricing-section.
Shipping cost will apply.
The product is maintenance-free, but must not be covered. Indoor use only.
Dealers / Where to buy
Based on your location Heatit Controls does not have a reseller or distributor in your country. You can take a look at our list of resellers and distributors on the Where to buy section or you can purchase directly from us in Sweden on this site.
Base price without VAT: € 115.00
Base price subjective to 0% VAT: € 115.00

Heatit ZM Thermostat 16A
Z-Wave Thermostat 16A 868,4 MHz 4512673
€ 51.50

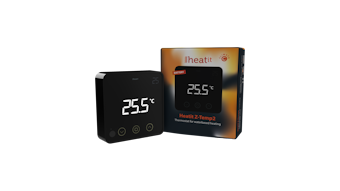

Heatit Z-Temp2 Black
